New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

Henan Xrido Environmetal Protection Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

Brand Name : Xrido

Model Number : Customizable

Certification : CE ISO TUV

MOQ : 1 set

Payment Terms : Negotiable

Delivery Time : 2-30 Working Days

place of origin : Henan, China

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Engine, Bearing

brand name : Xrido

warranty : 1 Year

material / metal processed : Stainless Steel, Brass / Copper, Alloy, Carbon Steel, Aluminum

key selling points : Automatic

Name : Waste Palstic Crushing

Keyword : Double Shaft Scrap Metal Recycling

Final product : 1-10 Cm

Advantage : High Efficiency Low Energy Consumption

Type : Environment-friendly

Material Processed : PE Film PP Woven Bags

After-sales Service Provided : Service Machinery Overseas

Contact Now

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant Industrial Waste Shredder

Products Description

The industrial waste processing system can transform industrial waste into high-quality high calorific value SRF/RDF, which can be used as fuel instead of fire coal, thus realizing the conversion of waste into energy.

This processing system is mainly aimed at relatively pure waste leather, commercial waste plastics and other high calorific value solid waste, for more complex waste can be equipped with screen and wind shifter to complete the target to be processed.

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

Industrial waste shredder is a mechanical equipment specially used for processing various types of industrial solid waste. It breaks large-volume materials into uniform fragments through shearing, tearing and extrusion. Its core functions include volume reduction, sorting and resource pretreatment, and it is widely used in the treatment of industrial waste such as metal, plastic, rubber, and wood. The equipment is usually composed of a tool system, a power unit and an intelligent control system, which can efficiently process complex materials and provide convenience for subsequent resource utilization.

model
size(mm)
Shredder room(mm)
Blads(mm)
motor(k)
weight(kg)
XD-600
2800×1300×1850
600×480
200
11×2
2200
XD-800
3000×1300×1850
800×480
200
15×2
2500
XD-1000
3300×1900×2200
1000×690
300
22×2
5200
XD-1200
3600×2000×2200
1200×690
300
30×2
6400
XD-1500
4180×2100×2400
1500×850
550
55×2
9000
XD-1800
5800×2400×3300
1800×1206
550
75×2
13600
XD-2000
6400×2700×3500
2000×1490
600
90×2
20100
XD-2500
7500×3200×3800
2500×1800
600
110×2
25000
Notes:
1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge.
2. The output of the equipment will be different depending on the type of material and the size of the discharge.
3. More information please contact us, we can custom the product on your request.

The advantages of industrial waste shredders are mainly reflected in three aspects: efficient volume reduction, resource adaptation and intelligent environmental protection. First, its volume reduction rate can reach more than 70%, which greatly reduces transportation and landfill costs. Secondly, the crushed materials are easier to sort recyclable components such as metals and plastics, improve resource utilization, and support RDF fuel preparation. Finally, the equipment integrates intelligent monitoring and environmental protection systems to ensure stable operation and reduce pollution emissions.

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

The main features of industrial waste shredders include customized tools, sturdy structure, versatility and modular design. The tools can be flexibly configured according to the characteristics of the materials, such as square knives for metals and hook knives for fiber materials. The machine body is made of thick steel plate welding and alloy steel cutters to ensure durability. In addition, the shredder can handle a variety of complex solid wastes such as electronic waste and old furniture, and supports quick replacement of cutters or screens to improve operational flexibility.

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

Main Application:
1. ‌Industrial solid waste‌
Leather/textile waste‌: such as clothing factory scraps, waste fabrics, etc.;
Papermaking light residue‌: single composition, stable calorific value, need to be combined with magnetic separation to remove metal impurities;
Wood product waste‌: scraps, sawdust, etc. produced by wood processing, with high calorific value and few combustion pollutants.
2. ‌Municipal domestic waste‌
Combustible light materials‌: waste plastics, waste paper, fabrics, etc.;
Packaging waste‌: such as plastic bottles, foam, etc., need to be crushed and mixed with other high calorific value materials to improve combustion stability.
3. ‌Agricultural and forestry waste‌
Straw/rice husk‌: high cellulose content, moderate calorific value, but need to be compressed to increase density;
Garden waste‌: branches, fallen leaves, etc., need to be dried to reduce the impact of moisture.
4. ‌Other special waste‌
Waste oil sludge‌: need to be dehydrated and mixed with solid waste to increase the overall calorific value;
Mixed industrial waste‌: such as rubber and plastic mixtures, need to be finely crushed and sorted.

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant



Providing one-stop Solution

High torque double shearing shredder and special single shaft shredder for SRF/RDF will be used in the system. After secondary shredding, the material size can reach 30-80 mm (based on the requirement),and the standard-reaching rate is higher than 95%.

The company's main products include double-axis shredders, metal crushers, solid waste disposal equipment and renewable resource equipment to meet the needs of different customers. By providing a one-stop solution, XRIDO Group can helps customers solve various solid waste treatment problems.

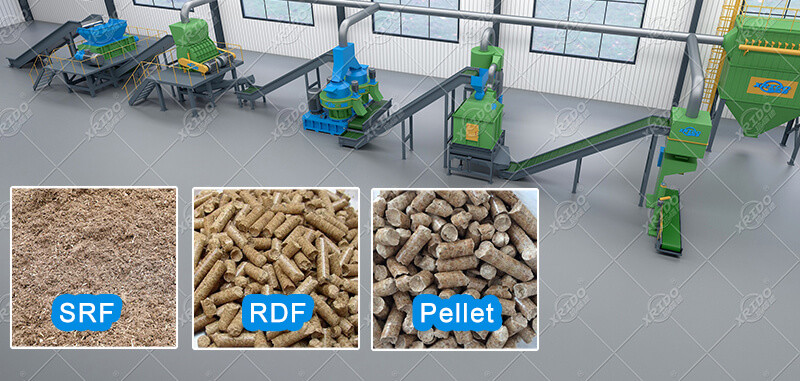

Waste to Biomass/RDF/SRF/TDF Briquette System::

The solid waste disposal system can be customized according to the actual materials.

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

MSW to RDF briquette Plant Industrial Waste to RDF briquette Plant

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

Biomass pellet/briquette Plant Waste Tire Disposal System

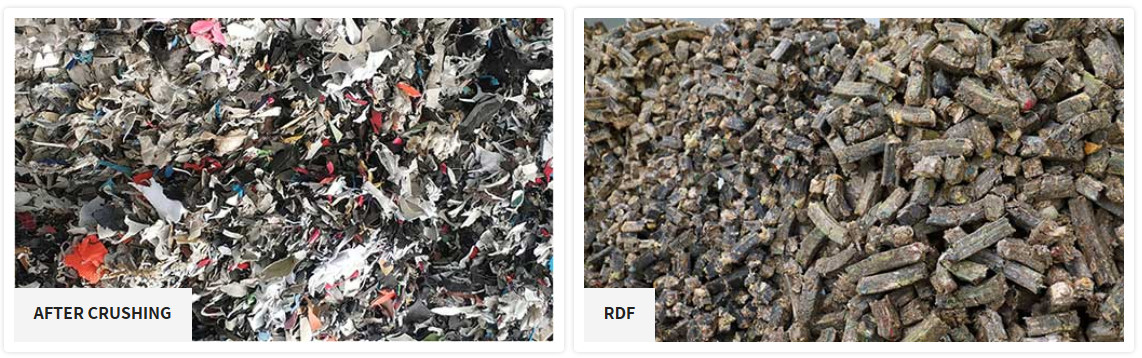

FINAL PRODUCT

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant


Customer Site

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant

New Industrial Waste Crusher MSW Crusher MSW Disposal System Industrial Waste Disposal Plant
